Description
The KTS Tesla cable kit provides a complete set of diagnostic adapters for full Tesla vehicle diagnostics using your Bosch KTS tool and ESI[tronic] software. This cable set covers Model 3, Model Y, Model S, and Model X (all models except Roadster and Cybertruck).

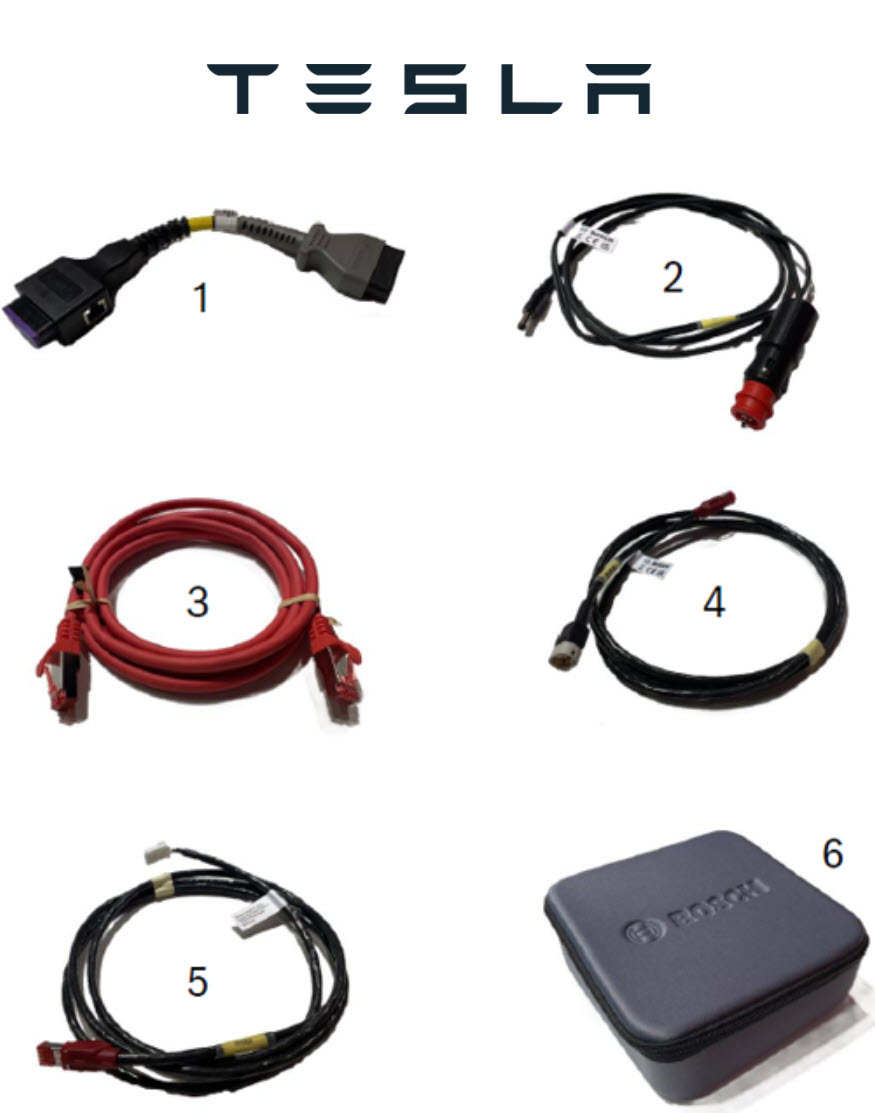

What’s Included
- 16-PIN OBD diagnostic connector
- High-Speed Data (HSD) connector
- Sumitomo connector
- RJ45 Ethernet connector
- Media converter box for signal translation
Tesla Diagnostic Coverage
Combined with ESI[tronic] software, the KTS Tesla cable kit provides dealer-level diagnostic access to Tesla vehicles. Read and clear fault codes, view live data, perform actuator tests, and access Tesla-specific diagnostic routines through your existing Bosch KTS 560 or KTS 590 tool.
As Tesla vehicles use non-standard diagnostic connectors and protocols, this dedicated cable set is required to establish communication between your KTS tool and the vehicle. The media converter handles protocol translation, ensuring reliable and fast diagnostic sessions.
Growing Tesla Market
With the expanding Tesla fleet, the KTS Tesla cable kit enables independent workshops to service these vehicles confidently using familiar Bosch diagnostic tools and ESI[tronic] software, rather than relying solely on Tesla’s own service network.
Frequently Asked Questions
Which Tesla models are supported?
The cable kit supports Tesla Model 3, Model Y, Model S, and Model X. The Roadster and Cybertruck are not currently supported. Diagnostic coverage is provided through ESI[tronic] software, which includes Tesla-specific functions. Bosch continues to expand Tesla coverage with each quarterly update.
Do I need a KTS tool as well?
Yes. The Tesla cable kit connects to a KTS 560 or KTS 590 with an active ESI[tronic] subscription. The cable kit provides the physical connection; the KTS tool and software provide the diagnostic functionality.
Why does Tesla need a special cable kit?
Tesla vehicles use non-standard diagnostic connectors and protocols that differ from the OBD-II standard. This cable kit includes 16-pin OBD, High-Speed Data, Sumitomo, and RJ45 connectors plus a media converter to translate between Tesla protocols and the KTS diagnostic interface. See Bosch diagnostic tools for more details.
