Oscilloscope Masterclass

Supercharge your oscilloscope diagnosis & fault finding skills.

This course will take the budding scope user through a diagnostic journey of discovery. You will build upon your existing base level of knowledge and experience.

The course intention is to equip you with the skills required to nail those difficult diagnostic jobs with ease.

The course makes use of the Pico, Bosch and Snap-on range of oscilloscopes and covers a very wide range of diagnostic techniques and processes.

• Triggers and Advanced Triggers.

• Masks and Alarms.

• Buffer and Buffer sorting.

• Bandwidth and sample rates.

• Relationship component testing – two, three and four channels.

• Ignition Systems.

• Amps, Microamps, wideband O2 sensors, active wheel speed sensors.

• In-cylinder Pressure Analysis.

• Exhaust pressure pulses.

• Waveform interpretation and analytic software.

Oscilloscope Masterclass will make the difference between diagnosing faults and not! This highly practical course will take you through our unique approach to fault finding a wide range of systems, such as Common Rail Diesel, Petrol Engine Management, Ignition Systems, CAN Bus (testing overview) and a vast array of other vehicle components. We will build your skills, knowledge and experience to an advanced user level.

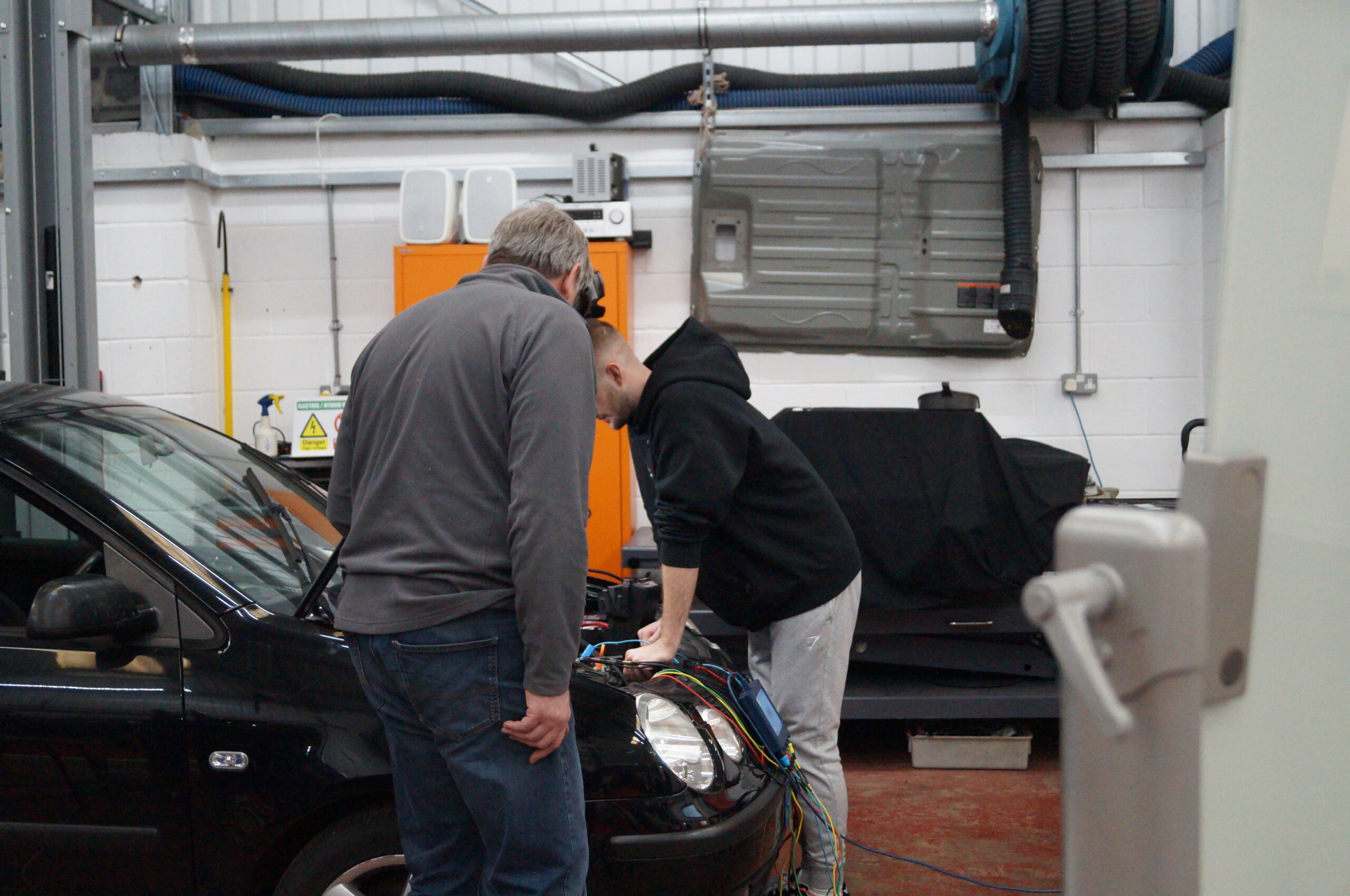

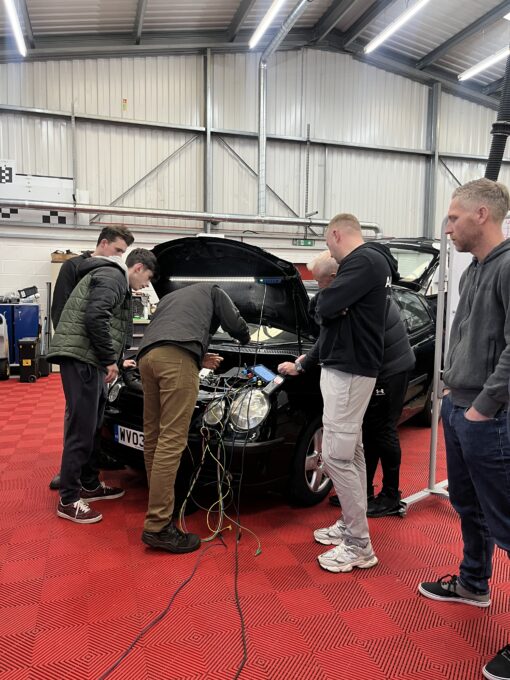

Everything we cover on this course has a direct link to the practical aspect of diagnosing and fixing vehicles. You’ll get hands on with a wide range of vehicle systems, components as well as the latest scope and associated measurement devices (such as pressure transducers, current clamps and analytical software).

Come on this course and supercharge your oscilloscope diagnosis & fault finding skills.

Another great course attended at TTHQ, guys are very good, and give good advice. Been using a scope for years but a refresher and some new test sequences they have developed are good. Thanks Rob
